Hierarchical Queries

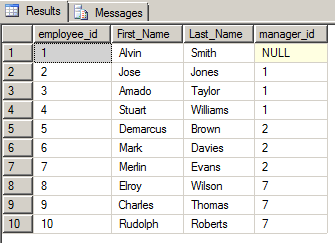

Another Question I came across few days ago. This question tests your understanding of SQL Hierarchical Queries and SELF JOIN. Given the following Employees table:

Note that this table has a certain hierarchy of employees and managers, such that a certain employee may also be a manager. For example, employee number 7 (Merlin Evans) is also the manager of Elroy Wilson, Charles Thomas, and Rudolph Roberts.

First Task – Create a query to display the name of all employees, and the name of their manager.

Second Task – Create a query to display the hierarchical relationship between a certain employee and his direct and indirect managers.
For example, for employee number 7, the query will display the following result (Merlin reports to Jose, and Jose reports to Alvin):

For employee number 10, the query will display the following result (Rudolph reports to Merlin, Merlin reports to Jose, and Jose reports to Alvin):

You can use this script to create and populate the tables


CREATE TABLE [dbo].[employees](
    [employee_id] [int]  NOT NULL,
    [First_Name] [varchar](25) NULL,
    [Last_Name] [varchar](25) NULL,
    [manager_id] [int] NULL
)
GO

INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (1, N'Alvin', N'Smith', NULL)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (2, N'Jose', N'Jones', 1)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (3, N'Amado', N'Taylor', 1)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (4, N'Stuart', N'Williams', 1)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (5, N'Demarcus', N'Brown', 2)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (6, N'Mark', N'Davies', 2)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (7, N'Merlin', N'Evans', 2)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (8, N'Elroy', N'Wilson', 7)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (9, N'Charles', N'Thomas', 7)
GO
INSERT [dbo].[employees] ([employee_id], [First_Name], [Last_Name], [manager_id]) VALUES (10, N'Rudolph', N'Roberts', 7)
GO

Click here to see the solution


--Q1--

SELECT E1.First_Name AS EmpName, E2.First_Name AS MangerName
FROM employees E1, employees E2
WHERE E1.manager_id= E2.employee_id


--SOL2 SQL--
WITH ManagerHierarchyTable(EmpID,EmpFirstName,ManagerID)
AS
(
    SELECT e1.employee_id,e1.First_Name,e1.manager_id
    FROM employees e1
    WHERE e1.employee_id = 10

    UNION ALL

    SELECT e.employee_id, e.First_Name, e.manager_id
    FROM Employees e, ManagerHierarchyTable mht
    WHERE e.employee_id = mht.ManagerID

)
SELECT * FROM ManagerHierarchyTable
